Hodeiertz

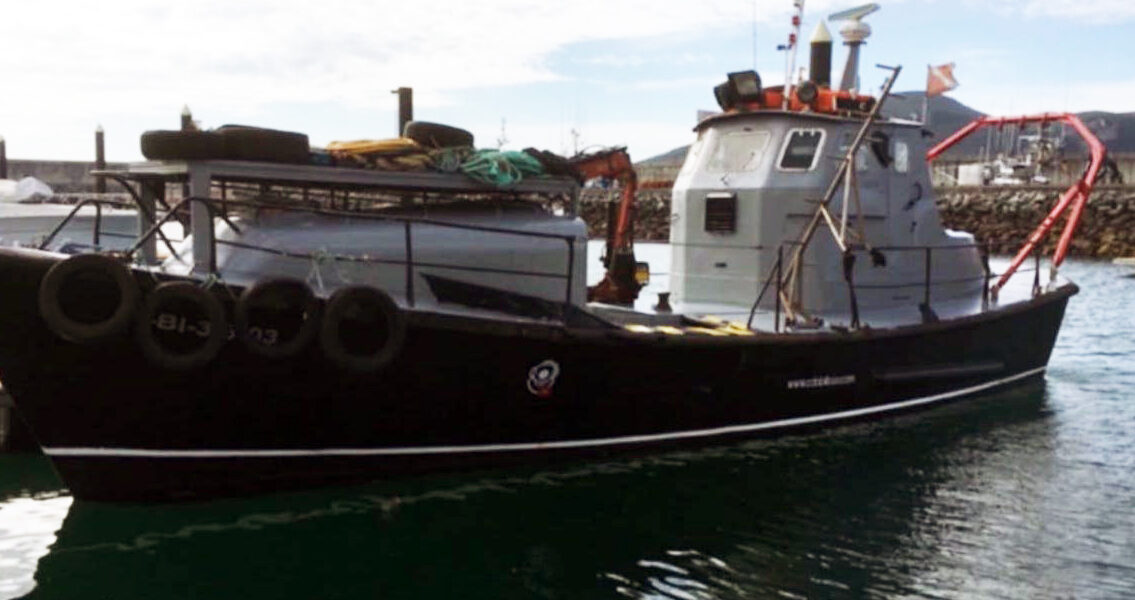

Tug Multipurpose Boat
TUG boat multipurpose DSV (Diving Support Vessel) equipped with Surface AIR/Mixed Gas diving, optional support ROV, cable and flow line handling, hose loading and flushing systems. The vessel is designed to support Inspection, Repair, Maintenance and Construction in offshore operations.
----
General information
- Build/Year: Astilleros Celaya, S.A. 1973
- Class Notation: SOLAS III/T/R
- Port of Registry: Bilbao
- Flag: Spanish
Dimensions
- Length Overall (LOA): 15.6 m
- Beam: 3.90 m
- Depth: 1.42 m
- Draft min: 1.35 m
- Draft max: 2.65 m
- Gross Tonnage: 22.07 tn
- Net Tonnage: 6.10 tn
Speed
- Service speed: App 18 kn
- Economical speed: App 12 kn
Cargo Capacity
- Clear Deck Area: 20 m²
- Deck capacity: 12 tn
- Fuel Oil: 2000 l
Accomodation
- Total: 15 px
- Crew: 3 px
- Passengers: 12 px
Propulsion/Machinery
- 2 x 270 HP (total: 540 HP) POYAUD 6L520 S2 Marine Diesel engine, coupled with a 24v electric Magnamax
- 1 x 6.5 kw generator 220v/380v
Comunications
- 1 x RTF VHF ICOM IC-M25
- 1 x SIMRAD NX-40P Marine Safety Receiver
Navigation System
- 1 x SIMRAD AT40 DGPS
- 1 x Plotter Navionic Electronic Cartography
- 1 x SIMRAD Standard Radar 24 Miles
- 1 x Universal Automatic Identification System
- 1 x Navigation Computer (MAX SEA 12V)
- 1 x Echo Sounder SIMRAD 20/200 khz
Deck Machinery: Cranes/ A–Frame
- 1 x PALFINGER PC 2300 cranes SWL 2.3 tn
- 1 x A-FRAME (LARS) 10 tn
Mooring Winches
- 1 x Hydraulic Winch 5000 kg
Anchoring
- 4 x 200 kg anchors four-point mooring
Mixed Gas / Air Diving Equipment
- 1 x Air Compressors LP
- 1 x Air Compressors HP
- 1 x 2 Diver Panel
- 2 x Diving Umbilicals 100m each
- 1 x 2 Diver Communication System
- 1 x CCTV Diver System
ROV Equipment
- Inspection Class and/or light work class ROV’s can be provided if required
